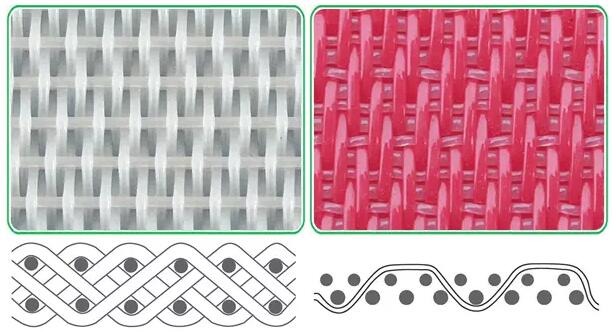

According to the category, polyester dryer fabrics can be divided into one and a half layer dryer fabric, double layer dryer fabric, flat wire dryer fabric, flat double warp wire dryer fabric and special material dryer fabric.
3-shed, 4-shed one layer and a half are suitable for drying cultural paper, printing paper and packing paper etc.
Flat wire and flat double warp wire dryer fabric is suitable for the fore several heating box of the drying zone, quality papers can use the both.
Special material dryer fabric have the characteristics of high temperature resistance, abrasion resistance and aging resistance etc.
Model NO.: Woven fabric-flat yarn
Applications: Filtration Textiles
Style: Weaving Fabrics
Width: According Customer Requirement
Structure: Fabric Form
Application: Paper Making, Filter Industry
Specification: SGC
HS Code: 59112000
Type: Dryer Fabric
Pattern: Plain
Gram Weight: 200-1200
Maximum Size: 21.3′ Width * 328′ Length
| Main series | Products | Scope of application | Feature |
| Woven Dryer Fabrics | Round monofilament | 3-shed one and a half layer is suitable for drying papers below 70g;4-shed two layer is suitable for drying papers above 70g; | stable size, good wear resistance, heat resistance, corrosion resisting,good air permeability,long service life,etc. |
| Flat monofilament | It is suitable for the fore several heating box of the drying zone, and quality papers can use all. | smooth surface, stable size, good wear resistance, heat resistance, corrosion resisting,good air permeability,etc. |
| Weaving type | Model No. | Filament diameter(mm) | Density(root/cm) | Thickness | Air permeability | ||
| Warp | Weft | Warp | Weft | mm | m3/m2h | ||
| 3-shed series | 22503 | 0.5 | 0.5 | 24 | 12 | 1.06 | 1.9 |
| 22453 | 0.45 | 0.45 | 24 | 13 | 0.99 | 1.7 | |
| 24503 | 0.5 | 0.5 | 25 | 12 | 1.1 | 1.9 | |
| 24453 | 0.45 | 0.45 | 25 | 13 | 1.02 | 1.8 | |
| 4-shed series | 20504 | 0.5 | 0.5 | 22 | 12 | 1.15 | 2 |
| 22504 | 0.5 | 0.5 | 24 | 12 | 1.26 | 2.1 | |
| 24504 | 0.5 | 0.5 | 26 | 12 | 1.3 | 2.1 | |
| 18504 | 0.5 | 0.5 | 20 | 11 | 0.85 | 2 | |
| Round yarn dryer fabrics | 4106 | 0.5 | 0.7 | 22.8 | 12.4 | 1.3 | 1.75 |
| 0.3 | |||||||
| Flat yarn dryer fabrics | 4106-1 | 0.58 | 0.35 | 21 | 15 | 1.2 | 1.5 |
| 0.37 | 0.68 | ||||||
| 4106-2 | 0.58 | 0.35 | 21 | 14 | 1.2 | 1.5 | |
| 0.37 | 0.68 | ||||||
| 4106-3 | 0.58 | 0.35 | 21 | 13 | 1.2 | 1.5 | |
| 0.37 | 0.68 | ||||||
| 4106-4 | 0.58 | 0.35 | 21 | 13.5 | 1.2 | 1.48 | |
| 0.37 | 0.68 | ||||||
| Type | Ring spec | Thread Dia(mm) | Tensile strength | Thickness | Weight | Air permeability | |
| mm | Warp | Weft | N/cm | mm | m2kg | m3/m2h | |
| Super loop | 4.8X10 | 0.9 | 1.1 | 2300 | 3.03 | 1.64 | 21000±500 |
| Large loop | 3.8X7.0 | 0.68 | 0.9 | 2000 | 2.45 | 1.4 | 18000±500 |
| Medium loop | 3.5X6.0 | 0.68 | 0.9 | 2000 | 2.45 | 1.31 | 16000±500 |
| Small loop | 3.2X5.2 | 0.5 | 0.8 | 1800 | 1.87 | 0.97 | 15000±500 |
