High quality filtration and liquid-solid separation are the keys to the popular horizontal vacuum belt filter. The filter is a relatively simple but efficient machine. With many years of experience in horizontal vacuum belt filter belt development, we have developed horizontal vacuum filter belts that are strong enough to move continuously. We uniquely design fabrics, yarns and braids to be abrasion resistant for long life. One of the benefits of belt filtration is that the operator can usually see the entire process and easily detect any process excursions that occur.
Our belt filtration media has proven to be more cost effective because it is easy to maintain and clean. We offer single and double layer belts with continuous innovation to improve dimensional stability, high flow rates and longer service life.
Horizontal vacuum belt filter cloths will withstand the forces of repeated suction on a vacuum filter, should have fine pore size for better filtration efficiency, and a smooth surface for easy cake release.
▸Polyester monofilament filter cloth
Made of high-strength, low-stretch polyester monofilaments. Smooth surface for easy cake discharge, acid-resistant, wear-resistant and high- The normal use temperature is less than 130 °C (266 °F), and the instantaneous use temperature is 150 °C (302 °F). The normal use temperature is less than 130 °C (266 °F), and the instantaneous use temperature is 150 °C (302 °F).
▸Polyester multifilament filter cloth
The series of filter cloth is weaving by the polyester filament in multi-strand. It is acid-resistant, high strength, better intercept ability for fine It is acid-resistant, high strength, better intercept ability for fine particles, but more difficult to clean than monofilament due to the multi-fiber. The normal working temperature is no more than 130 °C (266 °F), and the instantaneous working temperature is 150 °C (302 °F).
▸Polypropylene (PP) monofilament filter cloth
Made of polypropylene high-strength monofilament, smooth surface for easy cake discharge, acid and alkali resistant, hydrolysis, oxidation and The normal working temperature of PP filter cloth is less than 90 degrees Celsius, and the instantaneous use temperature is 90°C (194 °F ).
▸Polypropylene (PP) multifilament filter cloth
Made of polypropylene monofilament in multi-strand, smooth surface, acid and alkali resistant, hydrolysis, oxidation and mildew resistant, high strength, better intercept ability for fine particles, but more difficult to clean than monofilament due to the multi-fiber. The normal working temperature of PP filter cloth is less than 90 degrees Celsius, and the instantaneous use temperature is 90°C (194 °F).

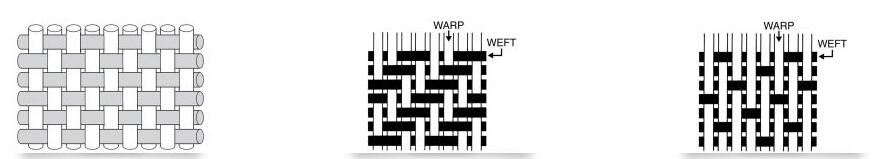

a. Plain weave b. Twill weave c. Stain weave
High permeability filtering efficiency, but low particle retention rate, small permeability, good particle retention effect, but reduced filtration speed. We will help you choose the most suitable type of filter cloth to get the best filtration yield.
Composite double woven tape filter cloths made from monofilament are the most widely used, due to their many advantages as follows.
●Two layers for filtration and support respectively.
●Dense and smooth surface, good filtration performance, easy to dislodge the filter cake and good resistance to clogging.
●Favorable to the side flow of slurry and increase the effective filtering area of the filter cloth.
●The lower layer woven by thicker yarns has larger pore size, which acts as a support member, helps drainage and promotes the fabric to adhere firmly to the rubber belt or drum.
●The tensile strength is better than that of single-layer and resists bending to avoid wrinkling during filtration.
